The break away fin tab is intact therefore, line (hot) is connected to the (only) one brass terminal on line side Then connect the white wire from the switch to the silver colored terminal on the outlet The neutral is connected to the neutral silv…
How to Wire Combo Switch & Outlet? Combo Device Wiring
Here we will discuss drails for wiring outlet switch combo providing an easy way to increase the working features of the electrical circuit
Let’s get started with how to wire a switch and.

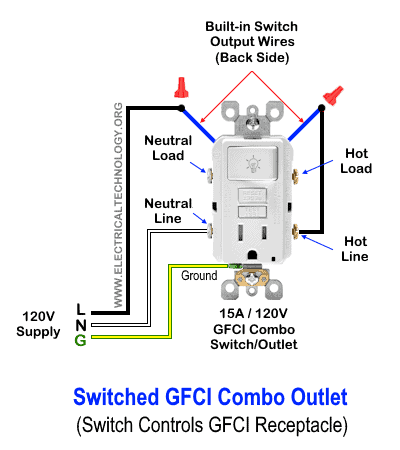

Switch outlet combo consists of a switch & an outlet (or receptacle) Learn how to wire a switch receptacle combo device to control lights. Master the wiring of outlet and switch combo devices Get clear diagrams for terminal identification, external load control, and split receptacle functionality.
Discover expert tips on switch and outlet combo wiring with diagrams Learn how to install and troubleshoot your electrical systems with our guide. Learn how to wire a switch and outlet combo with this clear wiring diagram Understand the connections, wire types, and installation process for safe, reliable.
In this article, we’ll take a closer look at.
This guide will show you how to connect a switch and outlet to a single. Learn how to wire a switch receptacle combo, also known as a combo device or combination device, which combines a switch and an outlet into a single unit. So, if you're ready to learn how to wire a switch and outlet combo, buckle up and let's get started First and foremost, let's break down the basics of a.
A light switch and outlet combo lets you add an outlet at a switch location or control an outlet from a switch without running new wiring Learn how to wire a switch/receptacle combination device with these detailed wiring diagrams Wiring diagrams for the different applications of duplex switch and. Learn how to wire a combination switch in your home to control both a light fixture and an electrical outlet
Black wires are considered hot and carry electricity from the breaker box, while white wires are.
Now let’s move to the wiring installation of only three phase loads and distribution board Wiring a switch and outlet combo is a relatively simple task, but it is important to follow the steps carefully to avoid making mistakes By following the steps in this guide, you can easily wire a switch and outlet.
