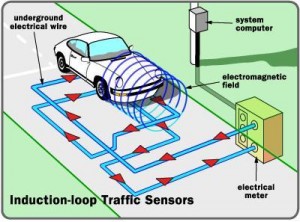

An insulated wire loop, or coil, is buried beneath a driveway and connected to a loop detector unit This configuration ensures that the gate opens only. This unit sends an electrical.
Print Article - Loop Sensor Technology - An Overview
Both loops of a directional detection must be close enough to each other so that every vehicle to be detected attenuates both loops
In this case the loops can also be laid in an interlocking way.
Learn about vehicle loop detector wiring and how to properly install and connect loop detectors for automatic gate openers and traffic control systems. The document provides guidance on installing inductive loop vehicle detectors which consist of a buried wire loop, detector module, and controlled device In general, loops having a circumference measurement in excess of 10 metres should be installed using two turns of wire, while loops of less than 10 metres in circumference, should have three turns or more. This article provides a detailed overview of how loop coil vehicle detectors work, the installation process, and the technical specifications that ensure proper operation and integration.

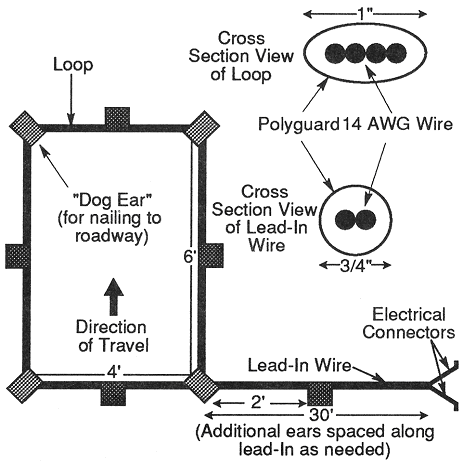

It is also important that the lead in wires from the detector to the beginning of the loop be twisted a minimum of five times per foot. Learn how to wire a loop detector with a wiring diagram Understand the connections and installation process for loop detectors. Connect the two loop wires to the loop input pairs of your loop harness using solder and seal the joints between loop wire and the loop harness to prevent corrosion.
The feeder should be twisted with at least 20 turns per meter
Joints in the wire are not. Loop detector installation complete guide in this video you will learn bow tu installation loop Loop detector installation, loop detector, loop detector connection, loop detector barrier gate. Floor wiring connects to a terminal strip in the control box.
First, remember that the loop is an integral part of the detector electronic circuitry We, the loop detector manufacturers entrust you with making a very important electronic part of our loop detector. Basics of vehicle detection loops basics of vehicle detection loops there are a number of ways to detect vehicles Exit wands, hose style detection, photo beams, and inductive loops
Vehicle loop detector wiring diagram a comprehensive guide to vehicle loop detector wiring diagrams understanding the various schematics and wiring diagrams associated with vehicle.
The mt470 loop detector is an electronic device manufactured by nortech, designed to detect the presence of vehicles at intersections or similar traffic. The inductive loop the inductive loop is simply a coil of insulated copper wire (loop wire) located in the roadway such that a vehicle passes directly over it The coil has a number of turns of wire and the. Wiring a loop detector for the d5 evo gate motor to trigger the gate only when a car is on the loop enhances security and operational efficiency
